Adss Single Sheath All Dielectric Self-supporting Aerial Cable

Description

Carefiber's ADSS Cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

Product Structure

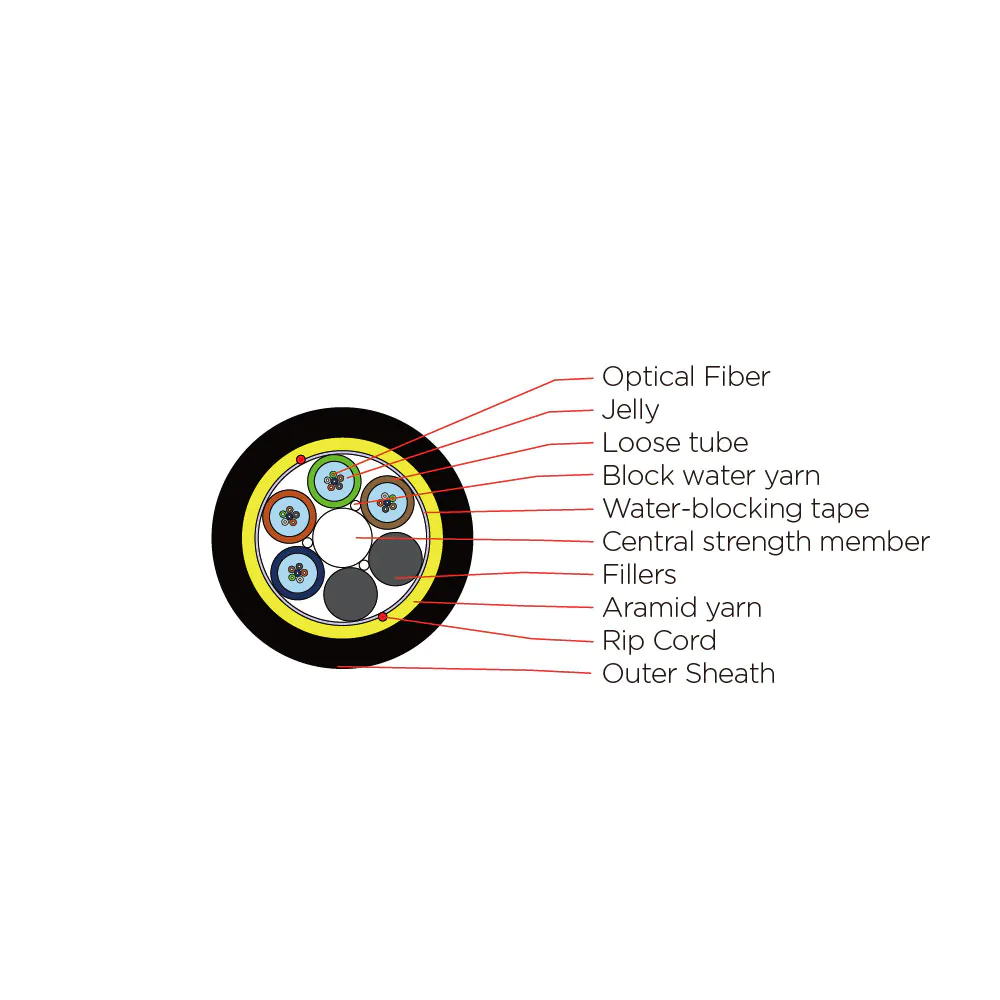

Structure Description

1. Loose Tube: Thermoplastic material, containing optical ﬁbres and ﬁlled with gel.

2. Filler Elements: Thermoplastic rods.

3. Central Strength Member(CSM): Glass ﬁbre reinforced plastic rod (GFRP), Coated with polyethylene when needed.

4. Longitudinal Water Blocking Material: Water-blocking tape.

5. Peripheral Strength Member: Aramid yarn.

6. Ripcord

7. Outer Sheath: Black polyethylene.

Features

1. Can be installed without a power outage

2. A protective cover, superior corrosion resistance

3. Lightweight, small cable diameter, reduce the impact of ice, wind power, and load on the tower, support

4. The precision control of aramid armor technology greatly improves the cable's tensile ability.

5. The precision control of the fiber length and the cable's twisted pitch ensure that the fiber cable has excellent tensile performance and temperature characteristics.

6. The life expectancy is greater than 30 years

Applications

Aerial

Optical Characteristics

Optical Fiber Characteristics

Fiber type		G652D(1310/1550nm)	G657A1(1310/1550nm)	G657A2(1310/1550nm)	G657B3(1310/1550nm)
Attenuation	Typical	0.35/0.21	0.35/0.21	0.35/0.21	0.35/0.21
Attenuation	Maximum	0.4/0.3	0.4/0.3	0.4/0.3	0.4/0.3
Zero Dispersion Slope		≤0.091 ps/km•nm²	≤0.092 ps/km•nm²	≤0.092 ps/km•nm²	≤0.092 ps/km•nm²
Dispersion(1285~1340nm)		-3.5-3.5 ps/km•nm	-3.5-3.5 ps/km•nm	-3.5-3.5 ps/km•nm	-3.5-3.5 ps/km•nm
Mode Field Diameter(@1310nm)		9.1±0.4μm	8.8±0.4μm	8.8±0.4μm	8.6±0.4μm
Cutoff Wavelength Cable(nm)		≤1260nm	≤1260nm	≤1260nm	≤1260nm
Min bend radius(mm)		16mm	10mm	7.5mm	5mm
Cladding Diameter(μm)		125±1.0	125±1.0	125±1.0	125±1.0

Dimensions of Cable Constructions

Times		Descriptions
Optical Fiber	Category	G652D
	Color	Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink Aqua
	Counts	4/6	12	24/36	48	72	96	144
Structure	/	1+6	1+6	1+6	1+6	1+6	1+8	1+12
CSM	Material	FRP (Fiberglass Reinforced with Plastic) if necessary, shall be jacketed with Polyethylene
Loose tube	Material	PBT
	Color	Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink Aqua
	Counts	1	2	4/6	4	6	8	12
	Fibers per tube	4/6	6	6/6	12	12	12	12
Filler	Number	5	4	2/0	2	0	0	0
Water-blocking	Material	Water-blocking yarns and tape
Rip Cord	Number	2 pcs
Peripheral Strength member	Material	Aramid yarns
Outer sheath	Material	PE
Outer sheath	Color	Black
Cable diameter(mm)±0.5		9.5	9.5	9.5	10.5	10.5	11.8	14.7
Weight ±10%kg/km		65	70	75	85	100	110	165
Maximum allowed tensile(MAT)(N)		1900	1900	1900	2300	2500	2700	3100
Span(m)		100
Crush(N/100mm)	Short term	2000
Applicable temperature range	Operation	-40°C~+70°C
	Installation	-20°C~+60°C
	Storage & shipping	-40°C~+70°C
Bending Radius	Operation	15 times of cable diameter
Bending Radius	Installation	25 times of cable diameter

Packge Method

Multiple packaging options are available.

0.00 ~~0.00~~

Advantages of Carefiber

1. Good Aramid yarn has excellent tensile performance.
2. Fast delivery,200km ADSS cable regular production time of about 10 days
3. Can using glass yarn instead of aramid to anti-rodent
