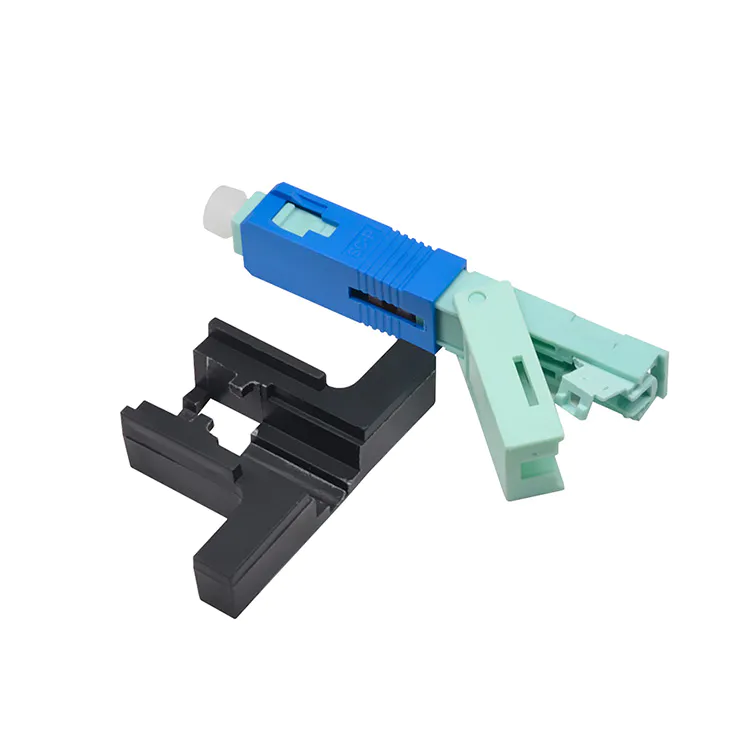

Spiral Types SC/APC（UPC） Fiber Optic Fast Connector Quick Assembly Single Mode

Model: CFO-5506

MOQ: >500

Place of Origin: China

Brand: OEM type

Material: PC+ABS

Delivery Time: 5-15days

Start Port: shenzhen

Supply Ability: 30000pcs/day

Price: Get Latest Price

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

Description

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Specification

Type Mode	SC/APC(UPC) Connector	Cable Type	2.0*3.0mm
Return Loss	≤55dB	Insertion Loss	≤.0.3dB
Bare Fiber Strength	>5N	Clad Strength	>10N
Tension	>50N
Mechanical durability(500times)	IL≤0.2dB&RL≤5dB	Tensile strength(20N)	IL≤0.2dB&RL≤5dB
Operating Temperature	minus5~70°c	Storage Temperature	minus40~+85°c
Fiber Mode	Single Mode	Application	FTTH Drop Cable, CATV,CCTV,etc

Model

Product Structure

Product Features

Features of Fiber Optic SC Fast Connector for FTTH

-Precise Mechanical Dimensions

-Low Insertion Loss,

-High Return Loss

-Comply standard of IEC61754-4

-High Repeatability

Applications of Fiber Optic SC Fast Connector for FTTH

- Premise envirinments

- Connections at the desk for LAN environments

- Patch Panels

- Direct equipment termination

- Fiber to the Subscriber(FTTX)applications

- Repair/replacement requirements

- Equipment test leads

Fiber cutting length

Fast connector field operation

apply to 2*3mm Bow-type drop fiber cable
