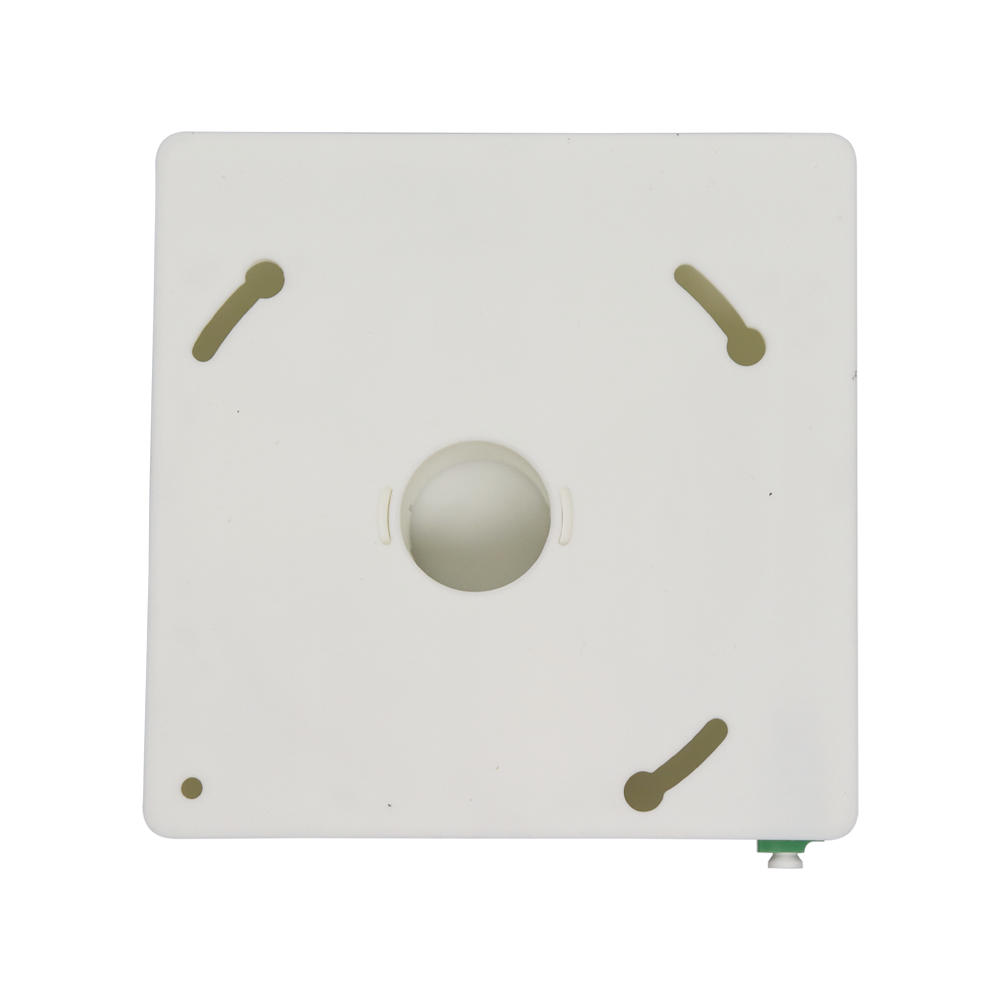

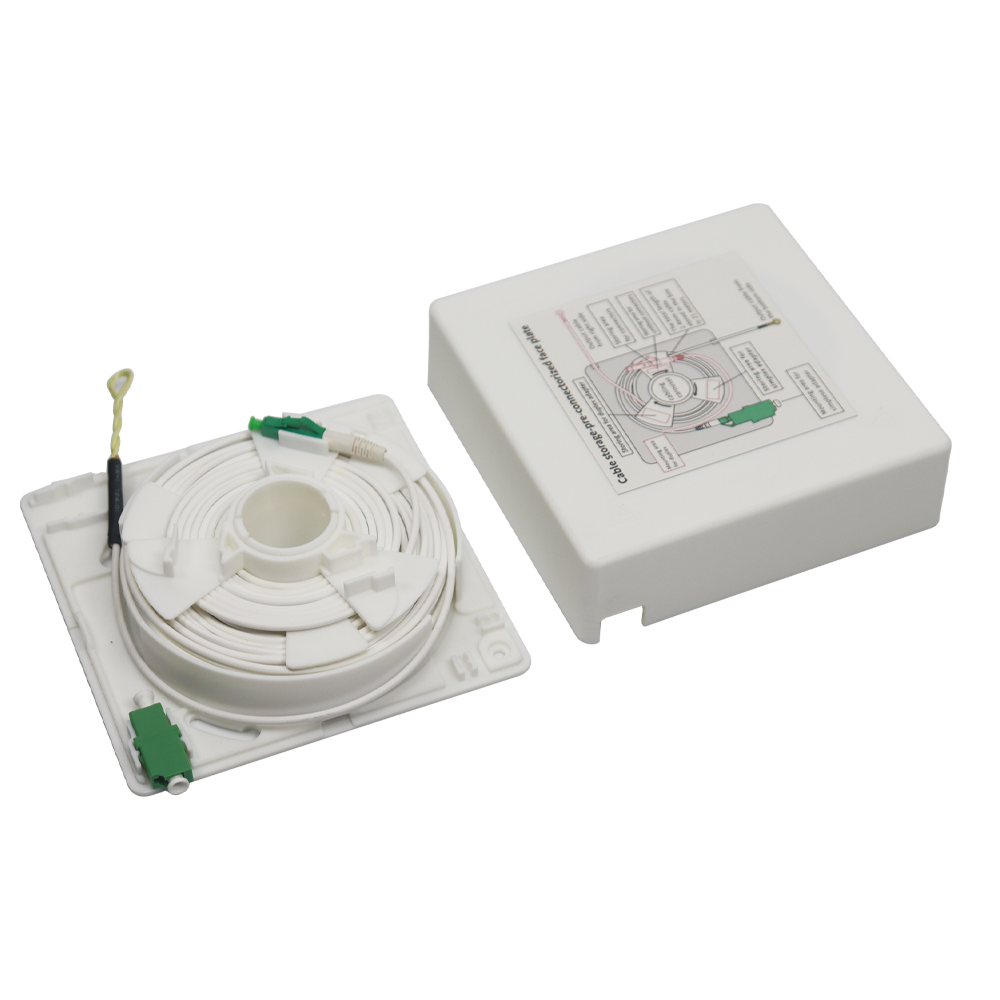

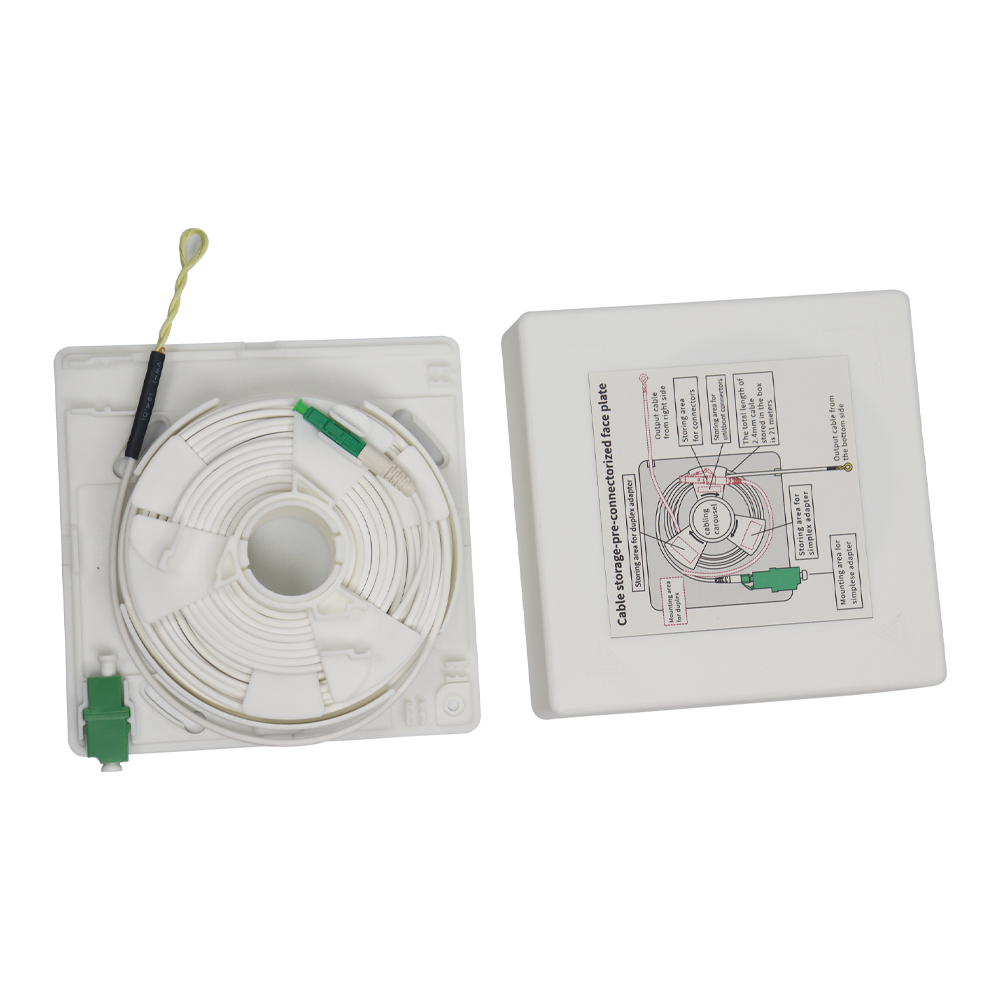

Cable Storage-Pre-Connectorized Face Plate With LC/APC Connector
The optical telecommunications outlet enables the management of bare or sheathed fibers on two separate sections. This offers increased mechanical protection to fiber splices and facilitates handling. It is available in four versions: bare, equipped, pre-wired, and preconnectorised. The Optic Rosette Box all network configurations for connecting dwellings and premises.
Cable Storage-Pre-Connectorized Face Plate With LC/APC Connector Features:
- Pre Connectorized
- LC/UPC Connectors for FTTH
- One Fiber (Long term with 2 or more connectors)
- Use of Routers with Direct Fiber Access(AVM)
- Can be pulled and blown
- Private people should be able to install the Box
- Available in 30, 50, 70, and 90m
- 20 meters of spare cable in the Box included
- OTO can be easy installed with screws
Cable Storage-Pre-Connectorized Face Plate With LC/APC Connector Applications :
- Smart Broadband
- Fiber to the home
- Broadband cable TV
- Local area network
Cable Storage-Pre-Connectorized Face Plate With LC/APC Connector Specifications:
| ITEM | Parameters | Remarks |
| External dimension | 98*98*35mm | |
| Scope of application | φ2.0mm Round cable | |
| Support adapter | SC | |
| Adapter Qty’(Max) | 2 pcs | |
| Capacity(Max) | LC 2ports | |
| Disc fiber curvature radius | ≥30mm | |
| Additional loss of optical fiber disk | ≤0.01dB | |
| Material | ABS-PC | Customizable |
| Color | White | Customizable |
| Weight | 150g | |
| Operating temperature | -40 ~ +65℃ |
