Miniature ADSS Drop Cable - Double sheath for access network drop cable

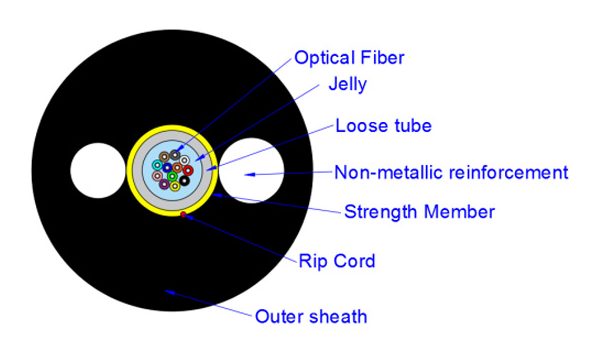

Carefibre's Miniature ADSS Drop Cable features 250μm fibers positioned in a loose tube made of high-modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer. The loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel Non-metallic reinforcements are placed on either side of the steel tape. The cable is completed with a polyethylene(PE) sheath.
Miniature ADSS Drop Cable - Double sheath for access network drop cable Dimensions and Construction:
| Items | ||
| Optical Fiber | Fiber count | 1-12FO |
| Fiber type | G652D | |
| Color | Blue Orange Green Brown Grey White Red Black Red Black Yellow Violet Pink Aqua |
|
| Loose Tube | Color | Blue Orange Green Brown Grey White Red Black Red Black Yellow Violet Pink Aqua > |
| Material | PBT | |
| Structure | Jelly | |
| Strength Member | Material | 2*FRP |
| Sheath | Material | PE |
| Color | Black | |
| Strength | Selective High-tensile yarn |
Miniature ADSS Drop Cable - Double sheath for access network drop cable Optical Features:
- Can be installed without a power outage
- A protective cover, superior corrosion resistance
- Lightweight, small cable diameter, reduce the impact of ice, wind power, and load on the tower, supports
- The precision control of aramid armor technology greatly improves the cable's tensile ability.
- The precision control of the fiber length and the cable's twisted pitch ensure that the fiber cable has excellent tensile performance and temperature characteristics.
- The life expectancy is greater than 30 years
Miniature ADSS Drop Cable - Double sheath for access network drop cable Optical Application:
- Aerial
- Outdoor
Miniature ADSS Drop Cable - Double sheath for access network drop cable Optical Fiber Attenuation(Single-mode):
| Fiber type | G652D
(1310/1550nm) |
G657A1
(1310/1550nm) |
G657A2
(1310/1550nm) |
G657B3
(1310/1550nm) |
|
| Attenuation
|
Typical | 0.35/0.21 | 0.35/0.21 | 0.35/0.21 | 0.35/0.21 |
| Maximum | 0.4/0.3 | 0.4/0.3 | 0.4/0.3 | 0.4/0.3 | |
| Zero Dispersion Slope | ≤0.091 ps/km·nm 2 | ≤0.092 ps/km·nm 2 | ≤0.092 ps/km·nm 2 | ≤0.092 ps/km·nm 2 | |
| Dispersion(1285~1340nm) | -3.5 – 3.5ps/(nm·km) | -3.5 – 3.5ps/(nm·km) | -3.5 – 3.5ps/(nm·km) | -3.5 – 3.5ps/(nm·km) | |
| Mode field
Diameter(@1310nm) |
9.1±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm | 8.6±0.4 µm | |
| Cutoff wavelength cable(nm) | ≤1260 nm | ≤1260 nm | ≤1260 nm | ≤1260 nm | |
| Min bend radius(mm) | 16 mm | 10 mm | 7.5 mm | 5 mm | |
| Cladding diameter(µm) | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | |
