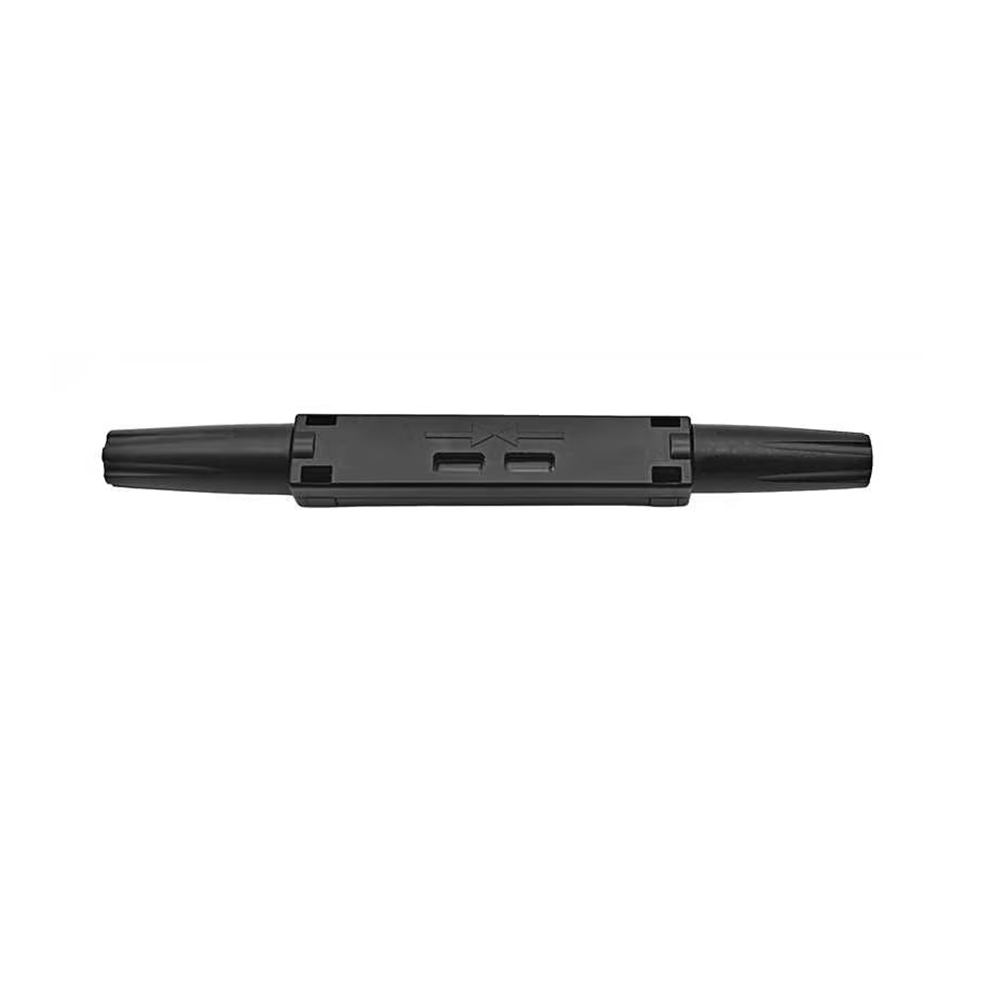

Mechanical splice closure CFO-L9401
The Fiber Mechanical splice closure CFO-L9401 from Carefiber products line, is an excellent cost effective repair or connectivity solution for both inside plant and in-field applications that is easy to assemble with minimal tools and technical expertise. The CFO-L9401 was designed for splicing flat cable and drop cable fibers, including the popular single-mode ITU-T G.652.D fiber.
Mechanical splice closure Characteristics:
- No Epoxy required, no more tool required
- V-groove technology
- Universal for flat drop cable
- Transparent window to check the splicing results
- Easy-to-install, minimal experience required
- Installation time is approximately 30 seconds
- Reusable body after connecting
Mechanical Splice closure Specifications:
| Item | Specification |
| Applicable for | Indoor or Outdoor FTTH |
| Cable diameter | 2*3mm flat cable |
| Material of plastic parts | V-groove:PEI, Others:PC |
| High-grade engineering plastic, mechanical strength | |
| and impact resistance, UV-resistance. | |
| Color: Black. | |
| Operating Wavelength | 1260~1650mm |
| Insertion loss | ≤0.15dB |
| Fiber holding strength | ≥3N |
| Return loss | ≥45dB |
| Tensile strength | ≥40N |
| Dimensions | LxWxH 93.8x9.9x7.5mm |
| Water/Dust protection | IP55 |
| Reusability | Minimum 5 reuse cycles |
| Operation time | about 30s(after preparing fiber ends) |
| Operating temperature | -10～+80℃ |

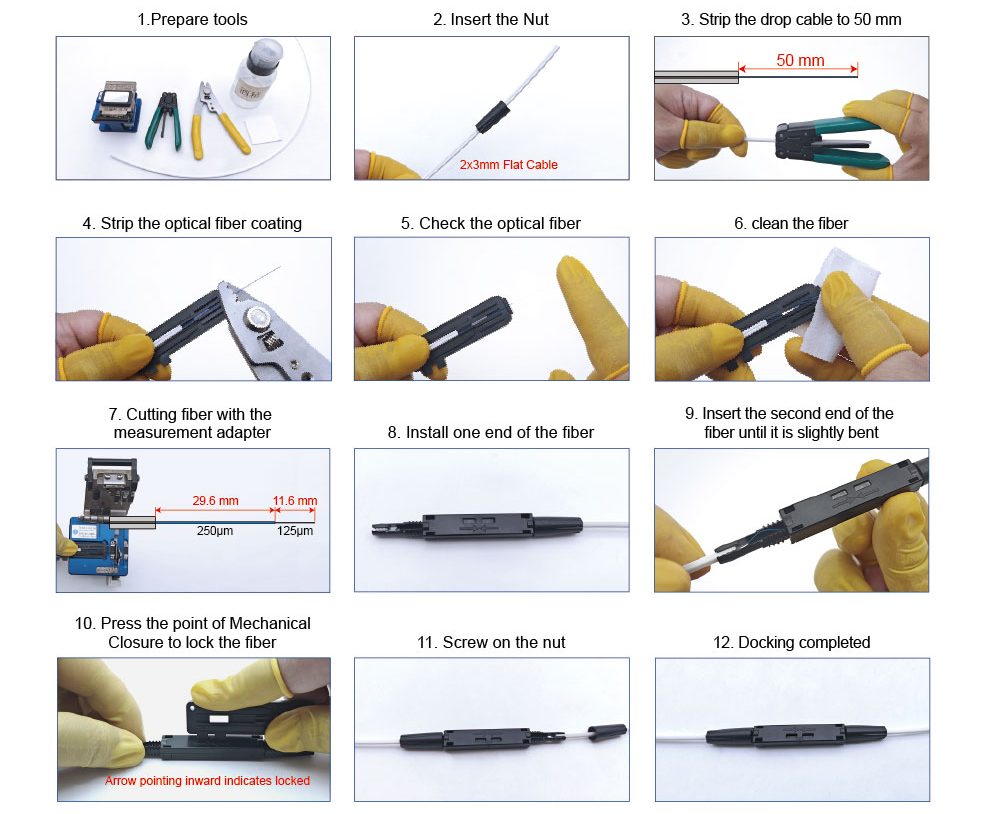

Mechanical Splice Closure Use Steps:
