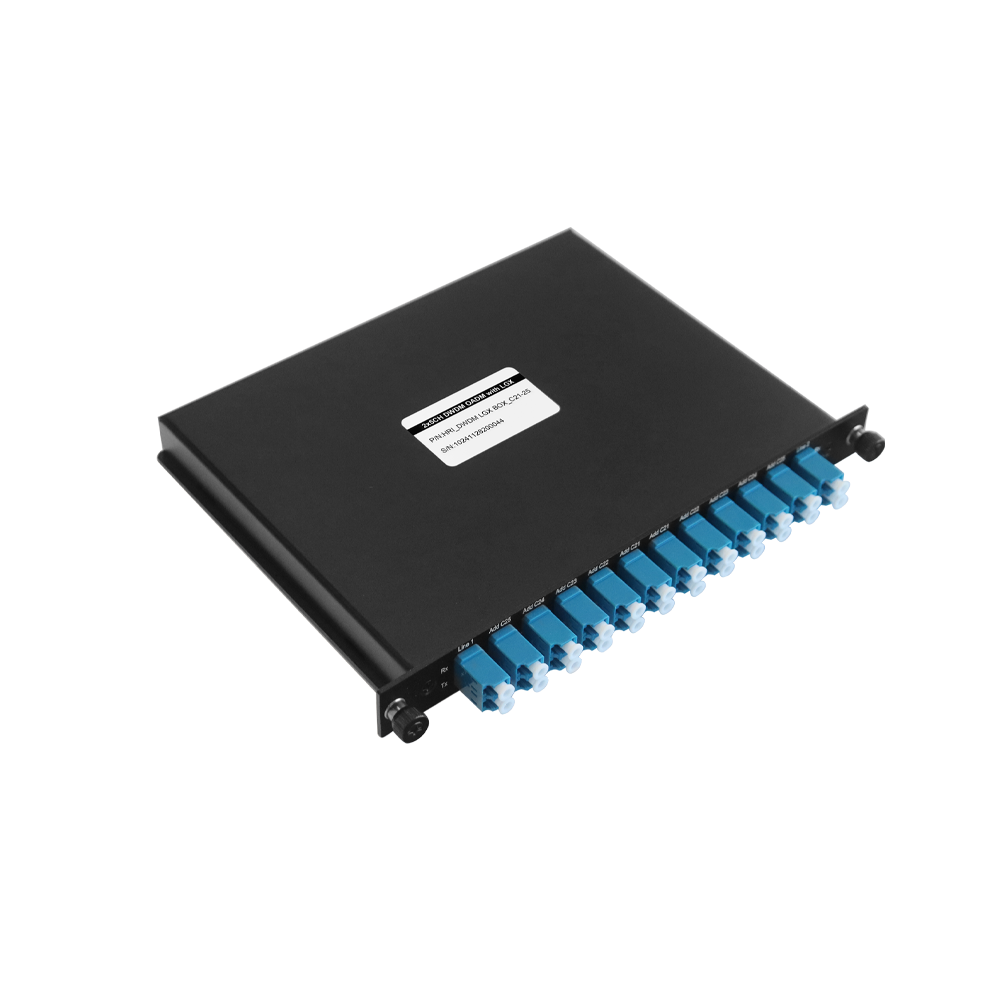

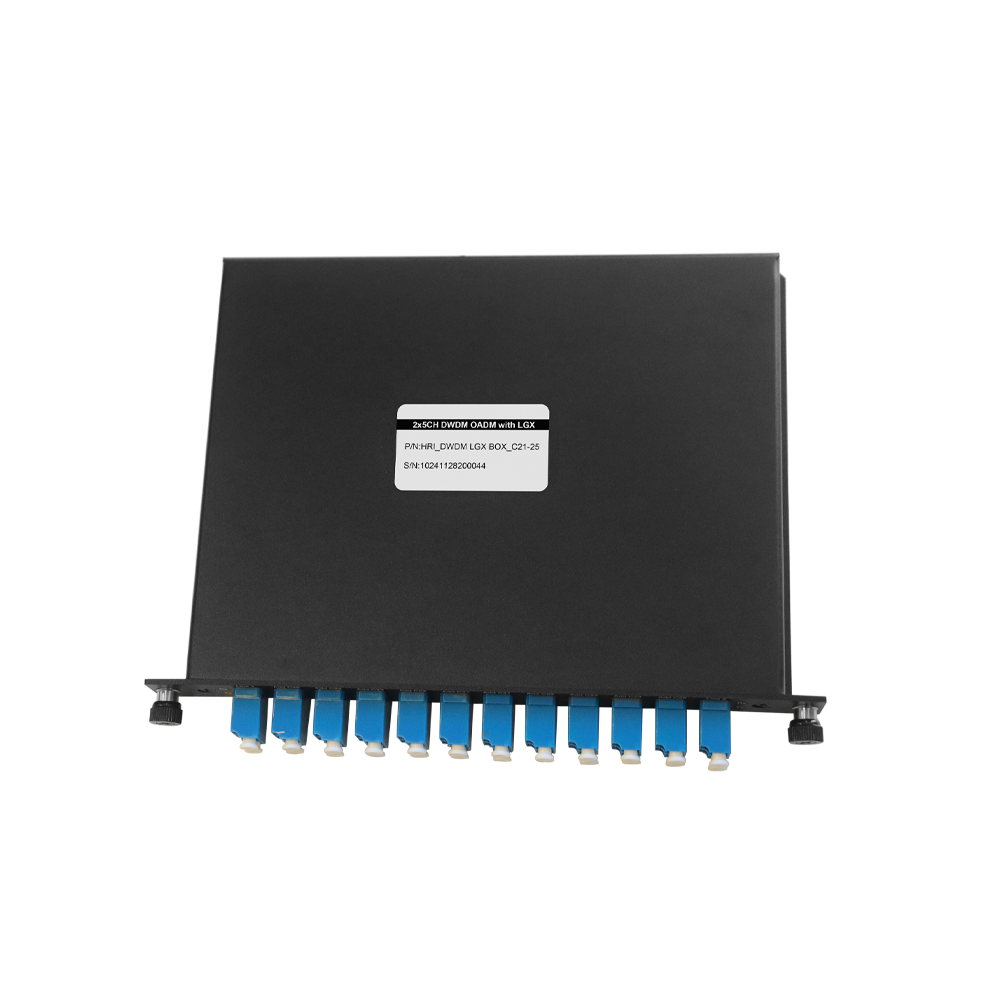

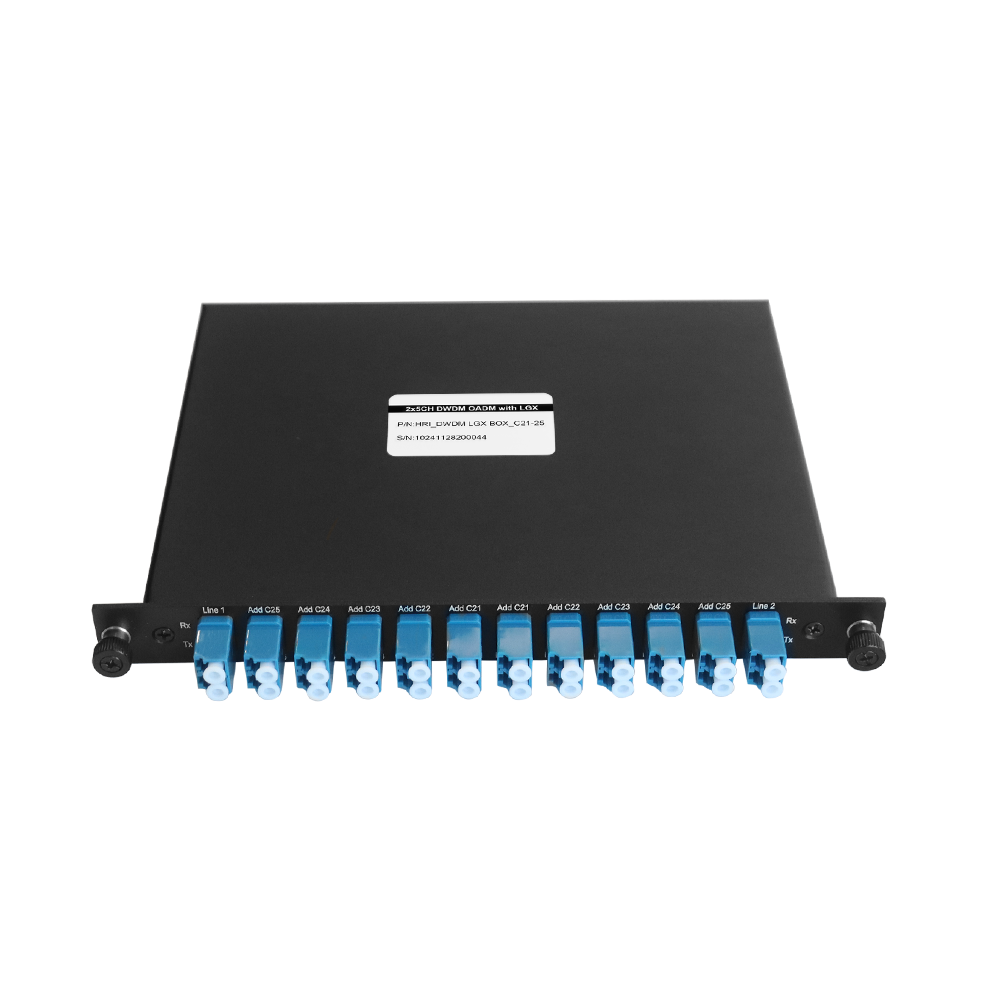

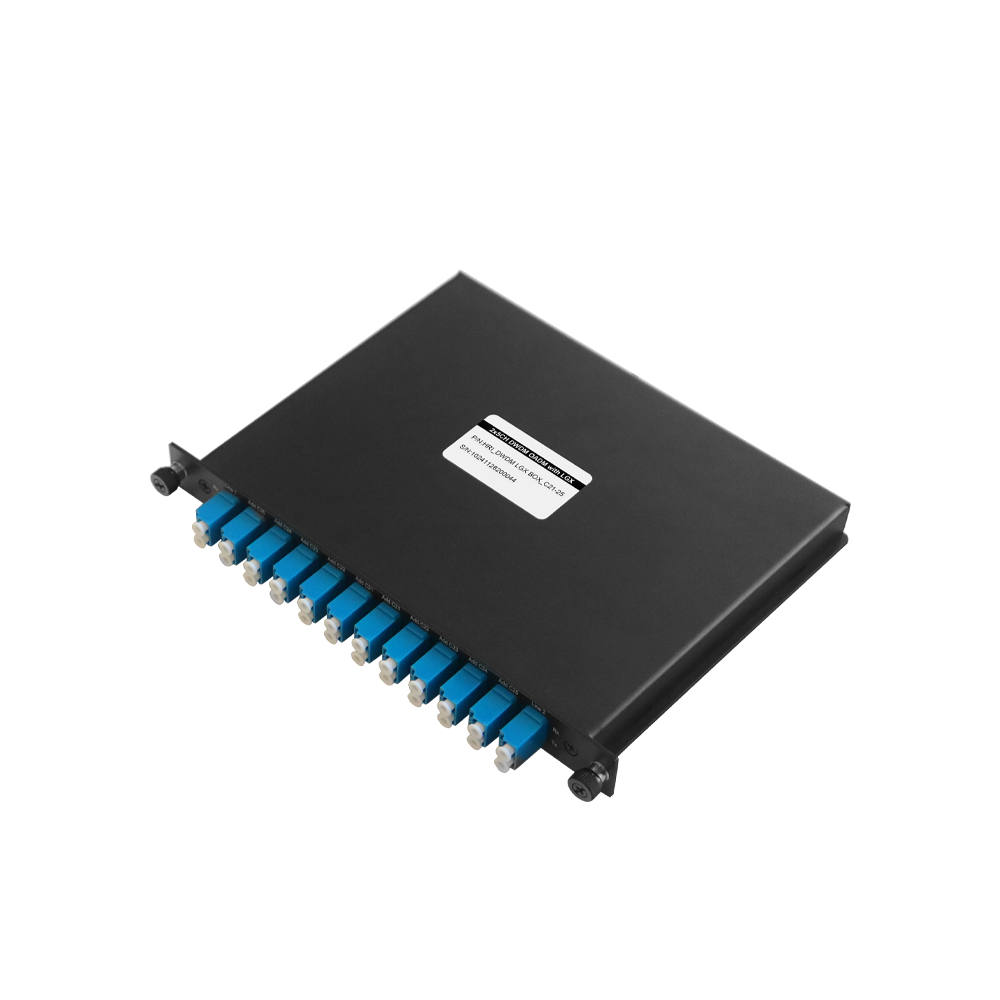

DWDM Mux Demux LGX Module
DWDM Mux Demux LGX Module Features:
- Low Insertion Loss
- Compact Size
- High Channel Isolation
- High Stability and Reliability
- Epoxy-Free on Optical Path
DWDM Mux Demux LGX Module Applications :
- Line Monitoring
- WDM Network System
- Telecommunication Network System
- CATV System
- Cellular Application
- Optical Amplifier
- Optical MAN /Access Networks
- Single Direction/Bi-Direction Transmission
DWDM Mux Demux LGX Module Compliance:
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
DWDM Mux Demux LGX Module Specification:
| Parameter | Unit | DEMUX&MUX | ||||||
| Center Wavelength | nm | ITU Grid | ||||||
| Channel Space | GHz | 100 | 200 | |||||
| Central Wavelength Accuracy | nm | ±0.05 | ±0.1 | |||||
| Channel Spacing | nm | 0.8 | 1.6 | |||||
| Channel Count | 1×2 | 1×4 | 1×8 | 1×16 | 1×N | |||
| Insertion Loss | Max | dB | 1.4 | 1.8 | 2.8 | 4.8 | N=0.30×(N-1)+0.6 | |
| Channel Passband(@-0.5dBbandwidth) | Min | nm | λITU±0.11 | λITU±0.22 | ||||
| Isolation | Adjacent channel | Min | dB | 30 | ||||
| Non-adjacent channel | Min | dB | 40 | |||||
| Passband Ripple | Max | dB | 0.30 | |||||
| Polarization Dependent Loss | Max | dB | 0.10 | |||||
| Temperature Dependent Loss | Max | dB/°C | 0.005 | |||||
| Directivity | Min | dB | 50 | |||||
| Return Loss | Min | dB | 45 | |||||
| Polarization Mode Dispersion | Max | ps | 0.10 | |||||
| Power Handling | Max | mW | 300 | |||||
| Pigtail Type | mm | 0.9 loose tube or Client Specify | ||||||
| connector Type | -- | Client Specify | ||||||
| Fiber Type | -- | SMF-28e or Client Specify | ||||||
| Fiber length | m | ≥1.0 or Client Specify | ||||||
| Operating Temperature | °C | -20 ~ 70 | ||||||
| Storage Temperature | °C | -40 ~ 85 | ||||||
| Package Dimension | mm | 100×80×10 or Client Specify | ||||||
