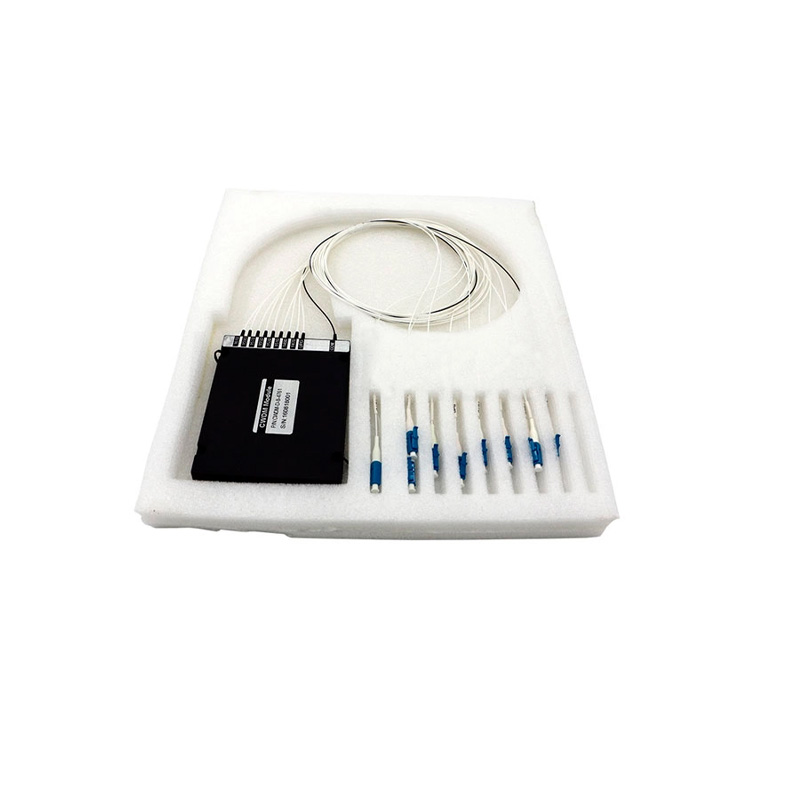

Low-Loss 9CH CWDM Multiplexer & Demultiplexer, 1270-1610nm, LC/UPC, Passive Design

Carefiber offers multi-channel coarse wavelength division multiplexer modules with optional wavelengths and up to 18 channels, effectively conserving fiber resources and reducing network costs. It solves the two problems of fiber shortage and multi-service transparent transmission. It is primarily used in the aggregation and access layers of metropolitan area networks, enabling the rapid establishment of networks and the conduct of business. Due to the advantages of low cost, low power consumption, small size, etc., CWDM is a low-cost, high-performance transmission solution, which has been widely used in metropolitan area network transmission.

Low-Loss 9CH CWDM Multiplexer & Demultiplexer, 1270-1610nm, LC/UPC, Passive Design Features:

  1. Low Insertion Loss
  2. High Channel Isolation
  3. Optical path epoxy-free
  4. Excellent thermal stability and reliability
  5. Good channel-to-channel uniformity
  6. Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
  7. Wide Operating Temperature: -20 to +70℃
  8. Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

Low-Loss 9CH CWDM Multiplexer & Demultiplexer, 1270-1610nm, LC/UPC, Passive Design Applications :

  1. CWDM Network
  2. Add/Drop System
  3. CATV Fiberoptic System
  4. Metro/Access Network
  5. Fiber Optical Amplifier

Low-Loss 9CH CWDM Multiplexer & Demultiplexer, 1270-1610nm, LC/UPC, Passive Design Compliance:

  1.   Telcordia GR-1209-CORE-2001
  2.   Telcordia GR-1221-CORE-1999
  3.   RoHS

Low-Loss 9CH CWDM Multiplexer & Demultiplexer, 1270-1610nm, LC/UPC, Passive Design Specification:

Parameters 4 channels 8 channels 16 channels
Combining wave Demultiplexing wave Combining wave Demultiplexing wave Combining wave Demultiplexing wave
Central wavelength (nm) 1270~1610 or 1271~1611
Channel spacing (nm) 20
Bandwidth (@-0.5dB) (nm) ≥13
Insertion loss (dB) ≤1.5 ≤2.5 Low loss ≤3.5 Standard loss ≤4.5
Isolation (dB) Adjacent ≥30
Non-adjacent ≥40
Temperature-dependent loss (dB) ≤0.5
Wavelength thermal stability (nm/℃) ≤0.002
Polarization-dependent loss (dB) ≤0.2
Polarization-mode dispersion (ps) ≤0.1
Directivity (dB) ≥50
Return loss (dB) ≥45
Maximum power (mW) 300
Operating temperature (℃) -10~+70
Storage temperature (℃) -40~+85
Packaging size (mm) L100×W80×H10 L120×W80×H18
19" 1U Chassis
Note: The above parameters do not include the connector
