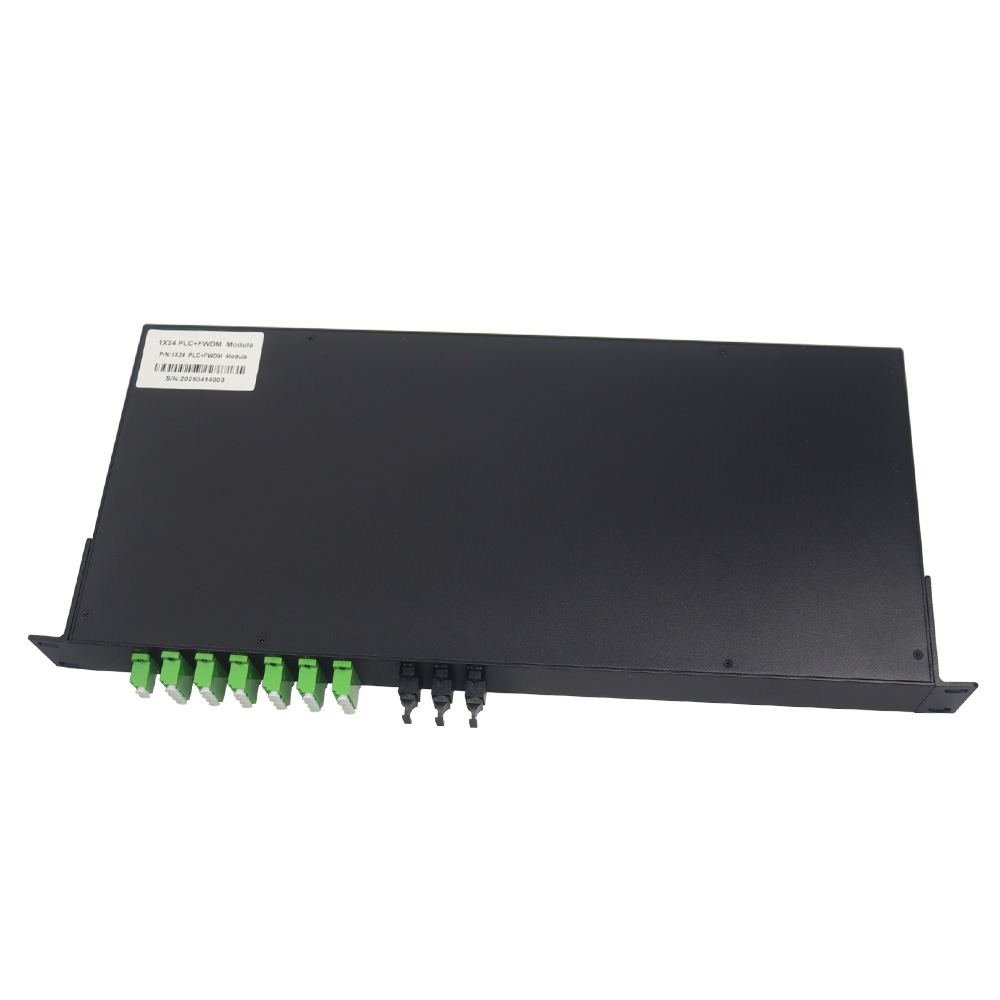

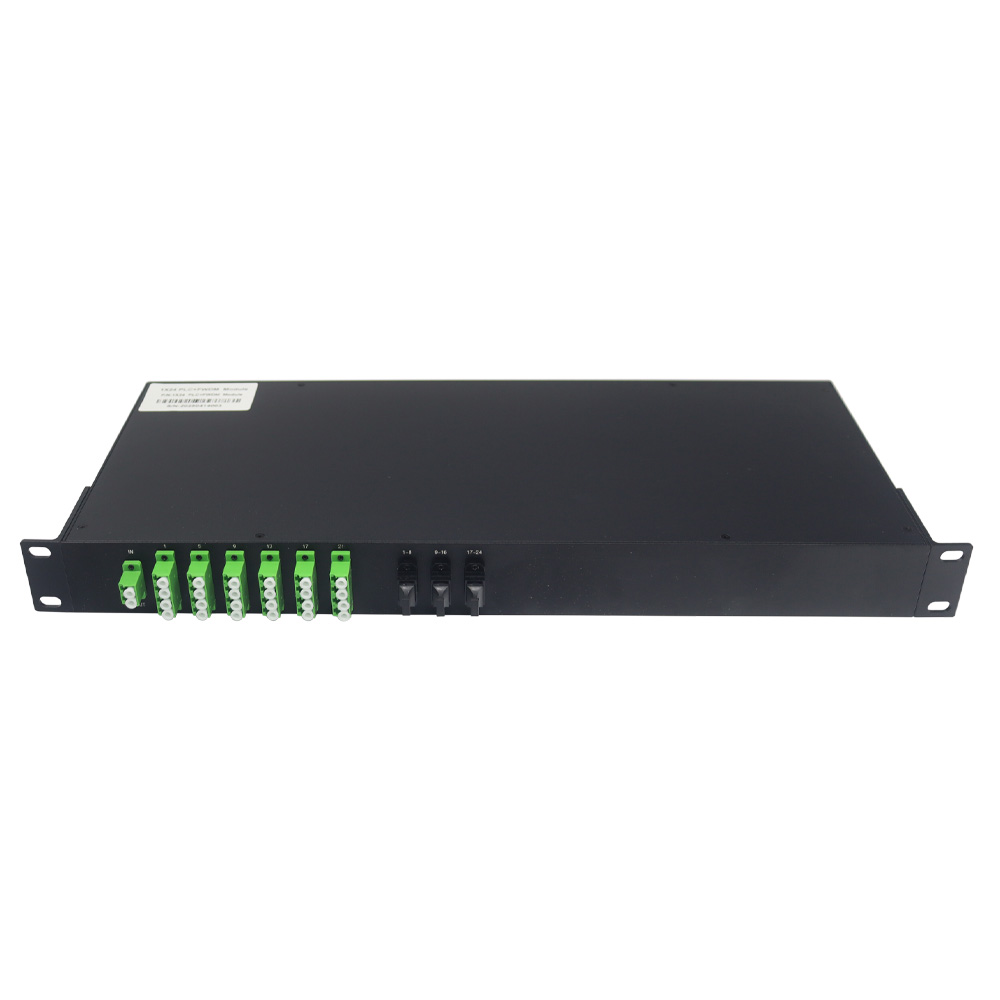

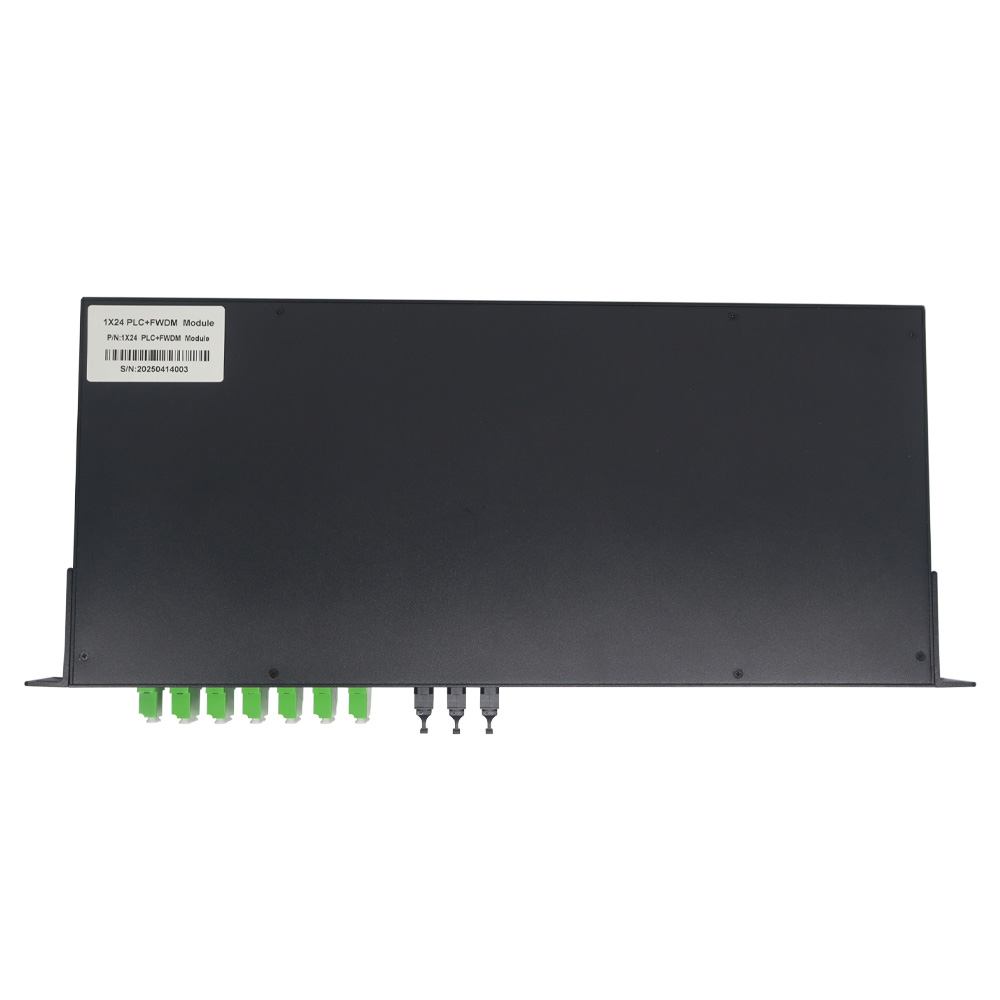

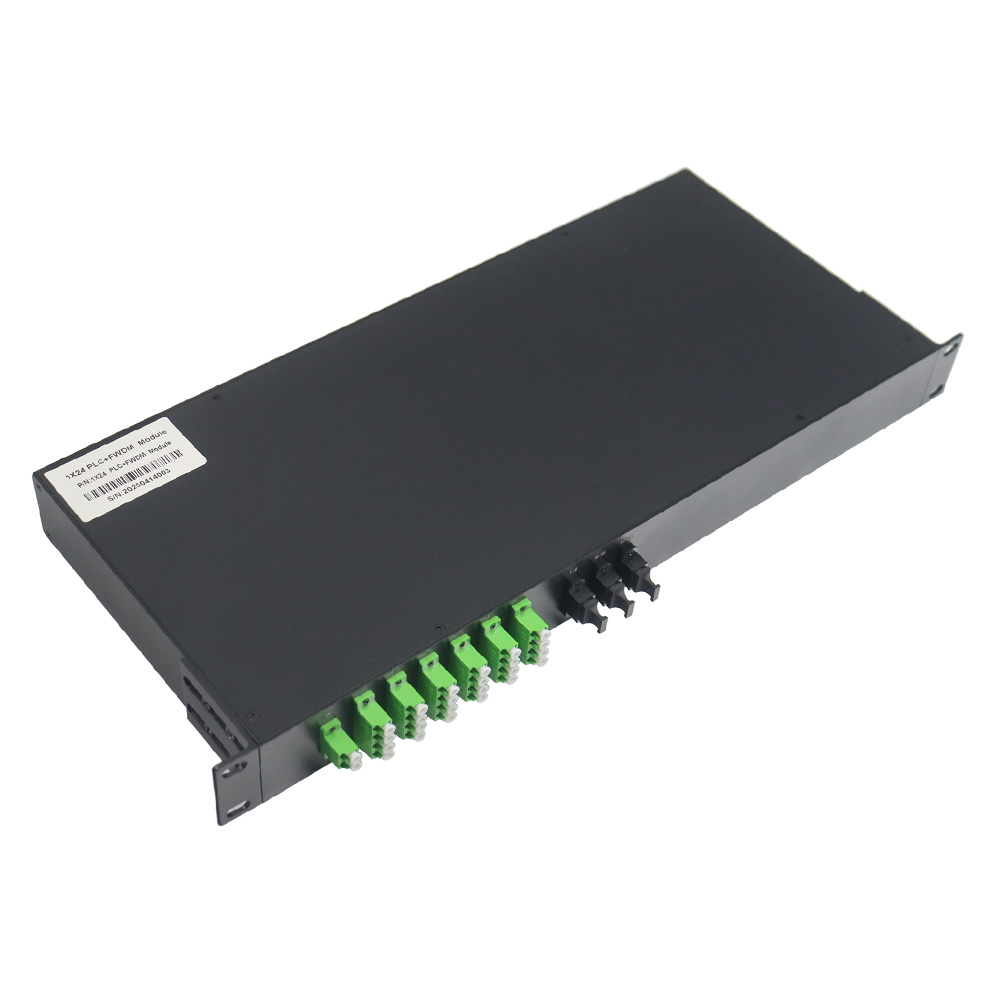

1 x 24 Rack Mount Single Mode Fiber Optic Splitter with MPO Connector
The PacSatSales Planar light-wave circuit (PLC) splitter is an optical power management device fabricated by using silica optical waveguide technology. It features a compact size, high reliability and wide operating wavelength range with good channel-to-channel uniformity. These PLC units are widely used in PON networks for optical signal power splitting
1 x 24 Rack Mount Single Mode Fiber Optic Splitter with MPO Connector Features:
- Low insertion loss, low polarization loss
- High isolation
- Wide operating wavelength
- Wide operating temperature
- High reliability and stability
1 x 24 Rack Mount Single Mode Fiber Optic Splitter with MPO Connector Applications :
- Wavelength division multiplexing systems
- Passive optical networks
- Broadcast cable television networks
1 x 24 Rack Mount Single Mode Fiber Optic Splitter with MPO Connector Compliance:
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
1 x 24 Rack Mount Single Mode Fiber Optic Splitter with MPO Connector Specification:
| Parameters | Specifications | Remark |
| IP signal wavelength | 1260-1360nm (upstream) | 1480-1500nm (downstream) |
| CCTV signal wavelength | 1540-1560nm | |
| Insertion loss | ≤1.5 dB (for IP) | ≤21.5 dB （for CATV） |
| Isolation/IP-downstream to CATV | ≥18dB | |
| Isolation/IP-upstream to CATV | ≥30dB | |
| Return loss | ≥50 dB | |
| Directivity | ≥50 dB | |
| Polarization-dependent loss | ≤0.3dB | |
| Size | L430xW250xH29mm | |
| Operating temperature | -40℃～+85℃ | |
