Certified High Quality Patch Cord Manufacturer Carefiber vs. Standard Interconnect Solutions
Date: 2026-06-15
Optimizing Fiber Connectivity for Diverse Network Environments
According to industry research, over 70% of network transmission failures in high-density data centers are directly attributed to issues at the physical layer, specifically related to fiber optic connectivity and end-face contamination. As a certified high-quality patch cord manufacturer, Carefiber addresses the subtle technical discrepancies that distinguish industrial-grade fiber links from standard interconnect solutions. While standard patch cords might suffice for basic connectivity, the increasing demand for 40G/100G transmission and complex Fiber-to-the-Home (FTTH) architectures requires a more rigorous approach to component manufacturing and material selection.
The Invisible Killers in Data Center and FTTH Links
Network performance issues frequently stem from "soft failures"—problems that do not cause a total blackout but lead to intermittent packet loss and increased latency. In high-temperature environments or high-density MPO 24-core scenarios, standard interconnect solutions often exhibit fluctuations in insertion loss and return loss. These instabilities typically arise from substandard ferrule alignment or thermal expansion of the connector housing.
When a network experiences these fluctuations, maintenance costs escalate as technicians struggle to isolate the faulty link within a sea of cables. This is where the value of a certified manufacturer becomes evident. Certification represents more than a document; it serves as a baseline guarantee for long-term link stability, ensuring that the physical layer remains robust under mechanical stress and environmental changes.
Performance Benchmarks: Certified Grade vs. Standard Products
The technical gap between Carefiber and generic alternatives exists primarily in the precision of materials and the rigor of the assembly process.
- Ferrule Precision and End-face Geometry
Carefiber Optical Technology Co., Limited utilizes high-quality Zirconia ceramic ferrules. Unlike the lower-grade composite or plastic materials found in some standard solutions, these ceramic ferrules maintain high concentricity and dimensional stability. In practical terms, this ensures that the patch cord achieves a consistent insertion loss of 0.3dB. Furthermore, the end-face geometry—including the radius of curvature and apex offset—undergoes strict inspection to meet IEC standards, allowing for a durability rating of over 500 matings without significant performance degradation.
- Specialized Sheath Selection
Standard PVC jackets often fall short in specialized deployments. Carefiber offers a range of options, from 0.9mm "invisible" fibers for aesthetic indoor routing to 5.0mm ruggedized black jackets for harsher environments. By utilizing Low Smoke Zero Halogen (LSZH) materials and G657.A1/A2 bend-insensitive fibers, these products provide superior flame retardancy and resistance to macro-bending. This makes them significantly more adaptable to the tight corners and congested trays found in modern telecommunication cabinets compared to rigid standard cables.
MPO High-Density Alignment and Polarity Management

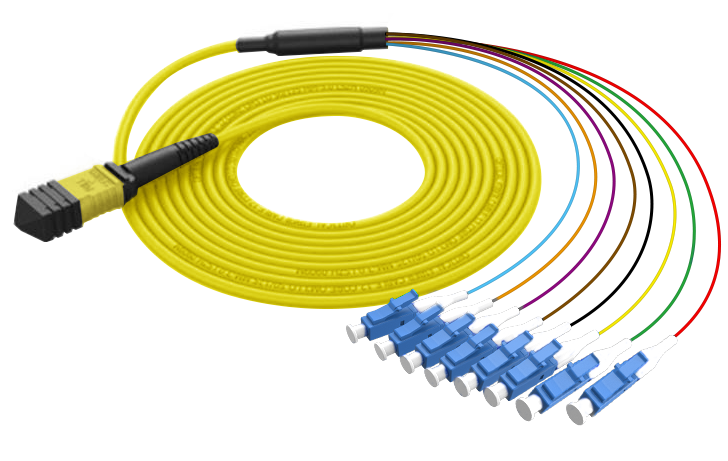

As data centers migrate toward parallel optics, the role of MPO/MTP components becomes critical. The precision of the alignment pins within an MPO connector dictates the success of a 100G link. Carefiber ensures high fiber-to-fiber consistency, which reduces crosstalk—a common issue in standard MPO solutions where slight misalignments lead to signal interference between parallel channels.
Effective polarity management also distinguishes professional-grade solutions. Carefiber Optical Technology Co., Limited provides a full suite of Type A, B, and C polarity configurations. In complex 12-core or 24-core fan-out assemblies, pre-configured polarity prevents the common "no-link" errors that occur during field installation, saving hours of troubleshooting and ensuring immediate plug-and-play functionality.
Comprehensive Quality Systems: From Factory to Field
The transition from a "passed" factory test to a "compliant" operational link involves a rigorous verification chain. Operating out of a 15,000-square-meter facility in Baise City, Guangxi, Carefiber integrates ISO 9001 and UL-certified processes into every stage of production.
A patch cord manufacturer with over 15 years of experience understands that reliability starts at the raw material stage. Carefiber tests incoming ferrules and fibers according to IEC 61754 standards before moving to final assembly. Each finished product undergoes testing to meet GR-326-CORE requirements. This exhaustive process ensures that when the patch cords reach a telecommunications provider for an ODN test, the insertion loss remains consistently below 0.5dB, meeting the strict requirements of TIA-942 data center standards.
Specialized Customization and Supply Chain Efficiency
The limitations of standard interconnect products often appear when a project requires non-standard specifications. Off-the-shelf inventories rarely account for the specific needs of a bespoke network layout.
Carefiber provides extensive OEM and ODM capabilities to bridge this gap. This includes the production of non-standard lengths, such as 0.3m short-reach jumpers for organized rack management, and hybrid connector combinations like LC/UPC to SC/APC. Beyond physical hardware, the ability to provide specific color-coding schemes assists network administrators in identifying different services or security levels within a patch panel.
By offering integrated packages—including patch cord, pigtails, and MPO harness cables—the company simplifies supply chain management for its partners. Instead of sourcing individual components from multiple vendors, clients receive a validated, cohesive interconnect solution tailored to their specific business needs.
Redefining Value Through Longevity
While standard interconnect products might offer a lower initial purchase price, the total cost of ownership (TCO) tells a different story. The frequent replacement of failing cables, the labor costs associated with troubleshooting "soft failures," and the potential revenue loss during network downtime quickly outweigh the savings of a cheaper component.
Choosing a certified high-quality patch cord manufacturer like Carefiber represents an investment in network longevity. Carefiber Optical Technology Co., Limited focuses on delivering products that perform reliably over years of service. For those seeking to optimize their optical communication infrastructure, detailed specifications and customized link solutions are available through the company’s official resources.
For more information on technical specifications, https://www.carefibergroup.com/
