Data Center High-Density Fiber Cabling: Why MPO/MTP Became the Default
Date: 2026-07-08
As data centers scale from 10G to 400G and beyond, the physical layer infrastructure faces a density crisis that traditional duplex connectivity cannot solve. The transition to parallel optics has made multi-fiber push-on (MPO) and mechanically transferable push-on (MTP) connectors the de facto standard for switch-to-switch links. This guide examines the technical drivers behind this shift and the practical considerations for designing, deploying, and maintaining MPO-based cabling systems.
The Port Density Problem
The fundamental constraint in modern data centers is not bandwidth per fiber, but ports per unit of rack space. A 1U patch panel equipped with LC duplex adapters accommodates 24 ports—48 fibers. The same panel with MPO-12 adapters handles 144 fibers. With MPO-16, that figure rises to 192 fibers. At 400G speeds, where a single switch port consumes 8 or 16 fibers, this density is not an efficiency gain. It is a requirement.
| Speed | Fiber Requirement | LC Duplex Ports per 1U | MPO-12 Ports per 1U | MPO-16 Ports per 1U |
| 10G | 2 fibers (1 pair) | 24 | 72 | 96 |
| 40G SR4 | 8 fibers (4 pairs) | 6 | 18 | 24 |
| 100G SR10 | 20 fibers (10 pairs) | 2 | 7 | 9 |
| 400G SR8 | 16 fibers (8 pairs) | 3 | 9 | 12 |
| 400G SR16 | 32 fibers (16 pairs) | 1 | 4 | 6 |
The table reveals a critical inflection point: beyond 100G, LC duplex connectivity becomes physically impractical without expanding cable management infrastructure beyond standard rack dimensions. MPO connectivity preserves the 1U form factor that data center designers rely on for consistent airflow, power distribution, and maintenance access.
Parallel Optics: The Architecture Shift
Traditional serial transmission sends one data stream per fiber pair. Parallel optics splits a high-speed signal across multiple lanes, each carried on a separate fiber. This approach has become essential because:
- Serial speed limits:Directly modulating a single laser at 400G or 800G is technically challenging and thermally expensive. Parallel lanes at lower per-lane rates are more reliable and cost-effective.
- Reach vs. cost trade-offs:Multi-mode fiber with VCSEL arrays (SR specifications) covers data center distances at lower cost than single-mode coherent optics.
- Standardization:IEEE 802.3 standards for 400G (802.3bs) and 800G (802.3dj) specify parallel lane configurations that map directly to MPO connector geometries.
The 400G SR8 transceiver uses 8 transmit and 8 receive fibers (16 total), organized as two rows of 8 in an MPO-16 connector. The emerging 800G standards will use 16 pairs, further cementing MPO-16 as the baseline connector for next-generation data center interconnects.
Polarity: The Hidden Complexity
MPO's physical advantage comes with a logical complication. Unlike LC, where each connector is a simple pair (A-to-B), MPO contains 8, 12, or 16 fibers in a single ferrule. Ensuring that transmit (Tx) fibers connect to receive (Rx) fibers at the far end requires deliberate polarity management.
Polarity Methods

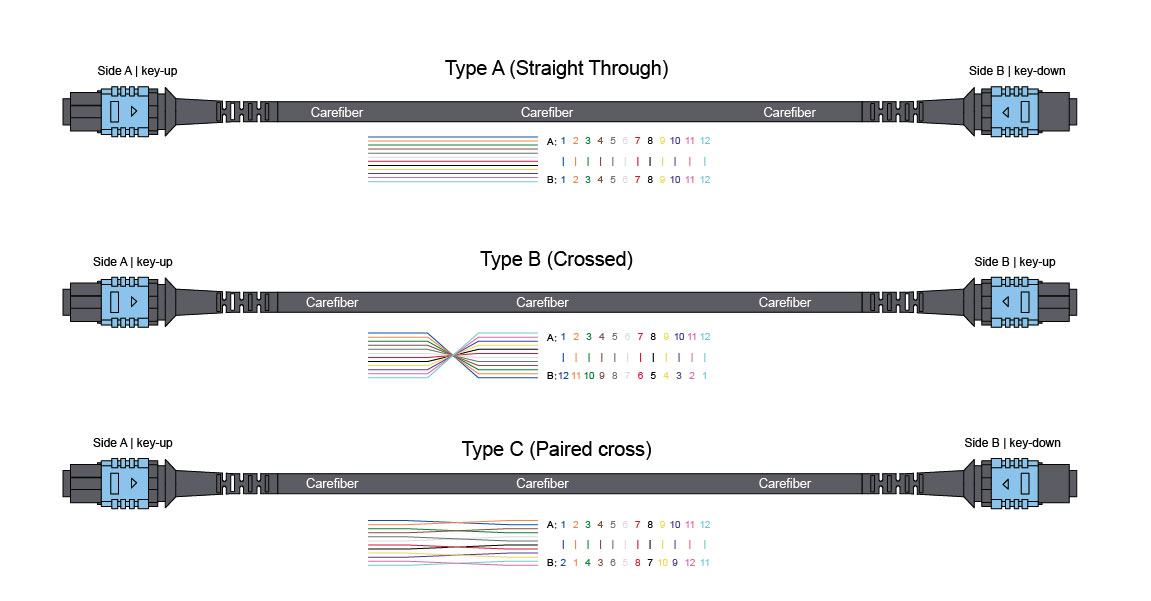

| Method | Fiber Mapping | Use Case |
| Method A | Straight-through (1→1, 2→2...) | Single trunk between two panels |
| Method B | Crossed (1→12, 2→11...) | Direct switch-to-switch links |
| Method C | Paired cross (1→2, 2→1...) | Specific legacy configurations |
In practice, Method A with a key-up to key-down adapter is the most common approach for structured cabling. Method B is used for direct connections where the trunk cable itself crosses the fiber mapping. The critical point: polarity must be designed, not assumed. A polarity error in a 1728-fiber MPO trunk affects every channel simultaneously.
Key-Up vs. Key-Down
The MPO connector includes a key on one side of the ferrule housing. Key-up means the key is on top when the connector is oriented with the latch facing away. Key-down is the inverse. In a standard adapter, key-up mates with key-down, creating the natural fiber crossover that Method B requires. Understanding this orientation is essential for field technicians during installation and troubleshooting.
Cleaning and Inspection: Higher Stakes, Higher Rewards
A contaminated LC connector affects one pair. A contaminated MPO ferrule affects 8, 12, or 16 fibers simultaneously. The inspection and cleaning discipline must scale accordingly.
Inspection Standards
- IEC 61300-3-35:Defines contamination and defect criteria for multi-fiber connectors. A single fiber failing the spec can reject the entire connector.
- Automated inspection:Probes with autofocus and multi-fiber analysis are now standard for data center commissioning. Manual inspection of 16 fibers per connector is no longer practical at scale.
- Documentation:Inspection images should be retained for warranty and troubleshooting records.
Cleaning Methods
| Method | Best For | Caution |
| Dry cleaning (swab/cartridge) | Light dust | Can drag debris across fibers |
| Wet-dry cleaning (solvent + swab) | Oils, fingerprints | Solvent residue must be fully evaporated |
| One-click cleaner | Field touch-ups | Verify compatibility with MPO-16; some tools only support 8/12 |
The cleaning tool must match the connector geometry. An MPO-12 cleaner forced into an MPO-16 connector damages the ferrule endface. For 400G/800G deployments, MPO-16-specific cleaning tools are mandatory.
Cable Types: OM3, OM4, OM5, and Single-Mode
The choice of fiber type determines reach, bandwidth, and transceiver compatibility:
| Fiber Type | Core Size | 400G SR8 Reach | Key Application |
| OM3 | 50µm | 70m | Legacy upgrades, short links |
| OM4 | 50µm | 100m | Standard data center horizontal cabling |
| OM5 | 50µm | 100m (SWDM) | Wavelength-division multiplexing for future-proofing |
| OS2 | 9µm | 500m+ (DR4/FR4) | Long-reach single-mode, hyperscale campuses |
OM4 remains the dominant choice for new data center builds. It provides sufficient reach for the vast majority of intra-building links while supporting the full evolution of parallel optics standards. OM5 offers additional wavelength channels for SWDM (shortwave wavelength division multiplexing), but transceiver availability remains limited compared to OM4.
For single-mode applications, MPO-12 with OS2 fiber supports 400G DR4 (500m) and 400G FR4 (2km). The connector is the same; only the fiber type and transceiver change.
Structured Cabling vs. Direct Attach
Data center designers choose between two MPO deployment models:

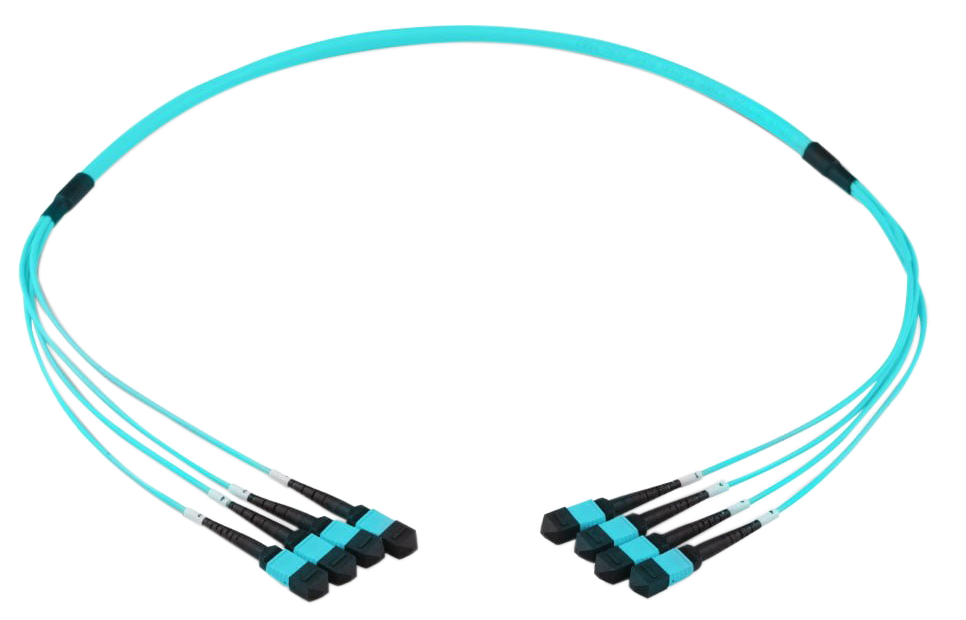

Structured Cabling (Recommended)
- Trunk cables:Pre-terminated MPO assemblies run from a main distribution area (MDA) to intermediate distribution areas (IDAs) or zone enclosures.
- Patch cords:LC or MPO patch cords connect switches to the structured cabling panels.
- Advantages:Simplified moves-adds-changes, consistent polarity, factory-tested assemblies, reduced field labor.
- Disadvantages:Higher initial material cost, requires accurate capacity planning.
Direct Attach (DAC/AOC)
- Direct connections:Active optical cables (AOC) or direct attach copper (DAC) connect switch ports directly without intermediate panels.
- Advantages:Lowest latency, no connector cleaning, simple deployment.
- Disadvantages:Fixed length, no field repair, higher per-meter cost for long runs, limited to 7m (DAC) or 100m (AOC).
For spine-leaf architectures with predictable topology, structured cabling with MPO trunks provides the operational flexibility that hyperscale operators require. Direct attach is reserved for top-of-rack to server connections where length is fixed and latency is critical.
Testing and Certification
MPO-based links require testing that goes beyond traditional insertion loss (IL) and return loss (RL) measurements:
Required Tests
- 3D interferometry:Verifies ferrule endface geometry (radius of curvature, apex offset, fiber height). Poor geometry increases loss and reflectance under mating pressure.
- IL/RL per fiber:Each of the 8, 12, or 16 fibers must be tested individually. A single high-loss fiber can indicate a cracked fiber, poor cleave, or contamination.
- Polarity verification:Confirms that Tx and Rx fibers are correctly mapped end-to-end.
- Channel testing:End-to-end OTDR or OLTS testing validates the complete link including patch cords and adapters.
At Carefiber, every MPO/MTP patch cord and trunk cable undergoes 3D interferometry on the ferrule and IL/RL testing on every fiber. Test data is provided with each assembly, including serial number traceability and individual fiber results. This documentation is essential for data center commissioning and warranty support.
Migration Path: 12-Fiber vs. 16-Fiber Infrastructure
A strategic question facing data center designers is whether to deploy MPO-12 or MPO-16 infrastructure today.
| Factor | MPO-12 | MPO-16 |
| 400G SR8 support | Requires conversion (breakout or 2x MPO-12) | Native support |
| 800G readiness | Not compatible | Native support |
| Component availability | Wider (mature ecosystem) | Growing (next-gen focused) |
| Cost | Lower | Moderately higher |
| Fiber utilization | 8 of 12 fibers (67%) | 16 of 16 fibers (100%) |
MPO-16 eliminates the fiber waste of MPO-12 for 400G/800G applications. However, the ecosystem—cleaning tools, test equipment, adapter panels—is still maturing. A common interim strategy is to deploy MPO-12 trunk cables with MPO-16 readiness (OM4 fiber, compatible duct and rack space), then upgrade to MPO-16 during the next refresh cycle.
Best Practices for MPO Deployment
- Design polarity before ordering:Document Method A/B/C decisions and key orientation in the cabling specification.
- Specify factory testing:Require 3D interferometry and per-fiber IL/RL with test reports.
- Match cleaning tools to connector type:MPO-12 and MPO-16 require different cleaning tool geometries.
- Plan for reconfiguration:Use modular panels and trunk cables that allow migration without full replacement.
- Inspect before connect:Every MPO mating should be preceded by connector inspection. "Inspect before you connect" is the data center equivalent of "measure twice, cut once."
- Document everything:Retain test reports, inspection images, and as-built drawings for the operational life of the facility.
Conclusion
The shift to MPO/MTP connectivity is not a trend. It is a structural response to the physical constraints of high-speed data center architecture. As 400G becomes standard and 800G approaches, the density, parallelism, and standardization that MPO provides will only become more critical.
Successful deployment requires looking beyond the connector itself to the ecosystem: polarity design, cleaning discipline, testing rigor, and migration planning. The organizations that master these elements will operate data centers with lower latency, higher reliability, and greater flexibility to adapt as bandwidth demands continue to compound.
